Contex HD Ultra X 36", 42", 60" Farb-CCD-Scanner

Name: Contex HD Ultra X 36", 42", 60" Farb-CCD-Scanner
Brand: Contex
SKU: HD-UX

Contex HD Ultra X 36", 42", 60" Farb-CCD-Scanner

The 36", 42" & 60" wide Contex HD Ultra X scanners are the epitome of productivity.
The scanner doesn’t require warm-up time, it’s super-fast, it detects your paper size instantly, and it transfers data onto your screen faster than any other large format scanner on the market. HD Ultra X matches the color of your originals like no other thanks to high-qualty CCD cameras.

Mehr erfahren

Scangeschwindigkeit (200 dpi RGB-Farbe)

Breite

Details

Daten

Sensor

CCD

Auflösung

Max. 9600 dpi / Opt. 1200 dpi

Verwenden

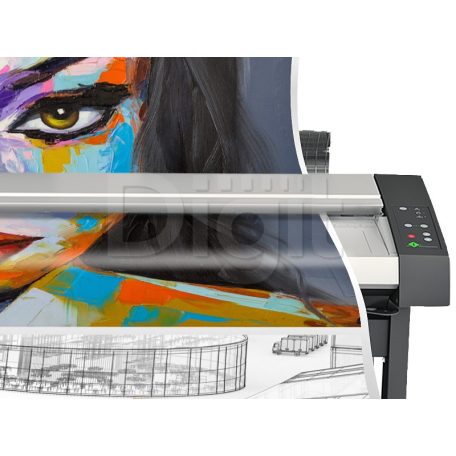

CAD & engineering, zur Dokumentenarchivierunge, GIS & Karten, Fotos, Kunstwerke

Genauigkeit

0,1% ± 1 pixel

Geschwindigkeit

27,1 m/min

Breite [mm]

914, 1067, 1524

Youtube-Video

HD Ultra X

Hersteller

Contex

Artikelnummer

HD-UX

Website

https://contex.com/product/hd-ultra-x-series/

Gewicht

70 kg/Stk.

Technische Daten

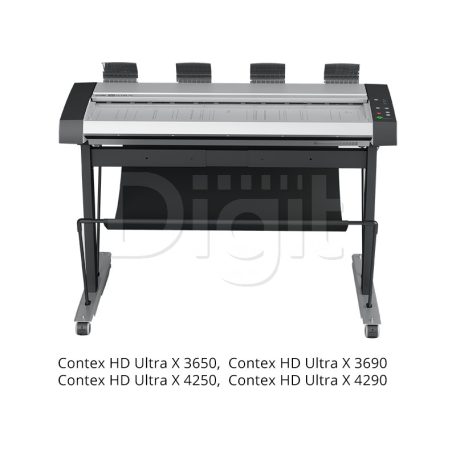

	HD ULTRA X 6050	HD ULTRA X 6090	HD ULTRA X 4250	HD ULTRA X 4290	HD ULTRA X 3650	HD ULTRA X 3690
200 dpi RGB color	60" (1524 mm)		42" (1067 mm)		36" (914 mm) ¹
Working height²	972 / 947 / 927 mm
SCANNING SPEED ³(ich/sec) at max. scan width of the scanner
200 dpi RGB color	8.9	17.8	8.9	17.8	8.9	17.8
Upgradable colour speed	Upgradable	Included	Upgradable	Included	Upgradable	Included
200 dpi grayscale/monochrome	17.8	17.8	17.8	17.8	17.8	17.8
PRODUCTIVITY ³ (documents/hour) Batch scanning for 60 minutes. Includes paper load and eject time. Measured in completed scans.
Arch E-size, portrait monochrome./RGB colour, 200 dpi	875 / 519	875	875 / 519	875	875 / 519	875
Arch E-size, landscape monochrome./RGB colour, 200 dpi	1055 / 642	1055
A0-size, portrait monochrome/RGB colour, 200 dpi	903 / 537	903	903 / 537	903	903 / 537	903
A0-size, landscape monochrome/RGB colour, 200 dpi	693	1057
Max. media width	61.8" (1570 mm)		43.3" (1100 mm)
Optical resolution	1200 dpi
Max. resolution	9600 dpi
CCD cameras	7 x 4 linear colour CCDs (RGB and grey)		5 x 4 linear colour CCDs (RGB and grey)
Depth of focus	0.3" (7 mm)
Max. media thickness	0.6" (15 mm)
Total number of pixels	299040 pixels		213600 pixels
Accuracy	0.1% +/- 1 pixel
Data capture (colour/mono)	48-bit colour / 16-bit grayscale
Colour space	Adobe RGB, Device RGB, sRGB
Connectivity	USB 3.0 with xDTR3, Gigabit Ethernet with xDTR2.5
Network workflow	Push-pull
Software ⁴	WIDEsystem (driver), Nextimage 6, Nextimage Remote tablet app ⁵ (free download for iOS and Android)
File formats ⁵	Big TIFF, TIF, JPG, PDF, PDF/A, DWF, CALS, BMP, JPEG-2000 (JP2), JPEG2000 Extended (JPX), TIF-G3, TIF-G4, multi-page PDF and others
Operating systems	Windows 11 64 bit, Windows 10 64 bit, Windows Server 2022 Standard Edition
Nextimage TWAIN	64-bit TWAIN application driver included for use with EDM and other imaging software
Weight	62.5 kgs		49.3 kgs
Dimensions	LxWxH: 1810 mm x 540 mm x 279 mm		LxWxH: 1360 mm x 540 mm x 279 mm
Power consumption (ready/sleep/scan)	Max. 39W / <1W / 130W (built-in power supply)
Power supply	100 V / 230 V / 240 V, 60 / 50 Hz
Certifications/compliance	RoHS, REACH, cUL, CE, Customs Union, CCC, VCCI, ENERGY STAR certified
Country of origin	Designed and engineered in Denmark, manufactured in China

¹ Upgradable to 42" (1067 mm)
² Requires an optional scanner stand.
³ Contex recommends Intel Core i5, AMD Ryzen 5 5500, or better 64-bit processors, 16 GB RAM and SSD SATA drive min. USB 3.0 or Gigabit Ethernet.
Productivity speed tests were performed using Nextimage software, a PC with Intel Core Ultra 7 265KF processor, 32 GB DDR5 RAM, 2TB SSD, USB 3.0 SuperSpeed and Windows 11 64-bit.
⁴ Contex applications create industry-standard raster file formats that can be used in any CAD or GIS application.
⁵ Requires optional Nextimage 6 software.
